Professional 9-Wavelength Red Light Therapy Panels

Elevate your wellness and recovery routine with the LumaHalo Radiance Elite™ Series—high-output, full-body red and near-infrared light therapy panels designed for advanced home users and professional wellness environments.

Available in two sizes, the Radiance Elite 450™ and Radiance Elite 600™ combine powerful light output with nine individually controllable wavelengths, adjustable intensity, customizable pulsing, touchscreen operation, Bluetooth/app connectivity, and remote control.

Whether you're building a dedicated home wellness setup or adding red light therapy to a gym, recovery studio, wellness center, or professional practice, the Radiance Elite Series gives you advanced functionality without sacrificing ease of use.

---

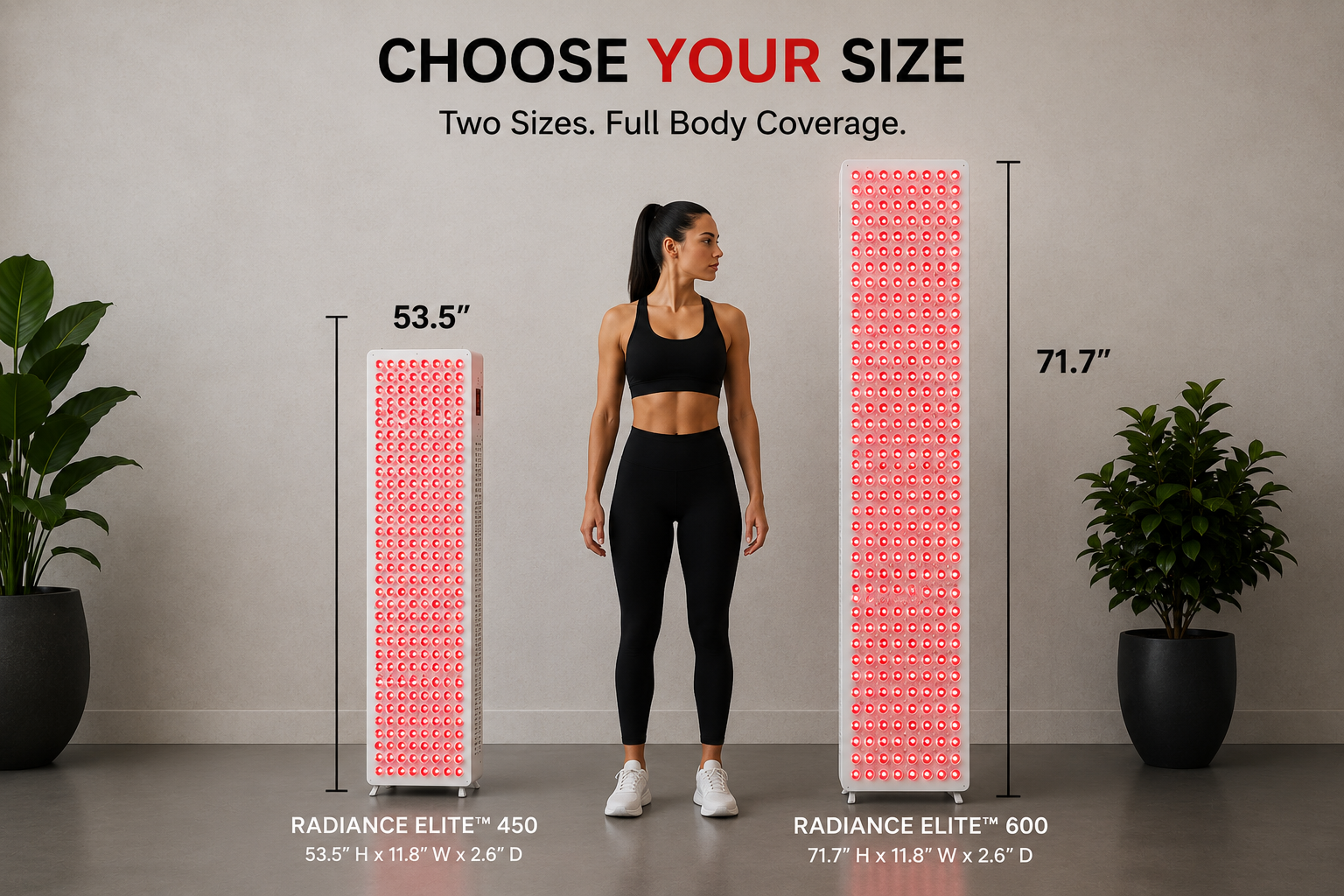

Choose Your Radiance Elite™

Radiance Elite 450™

High-output performance in a more compact footprint.

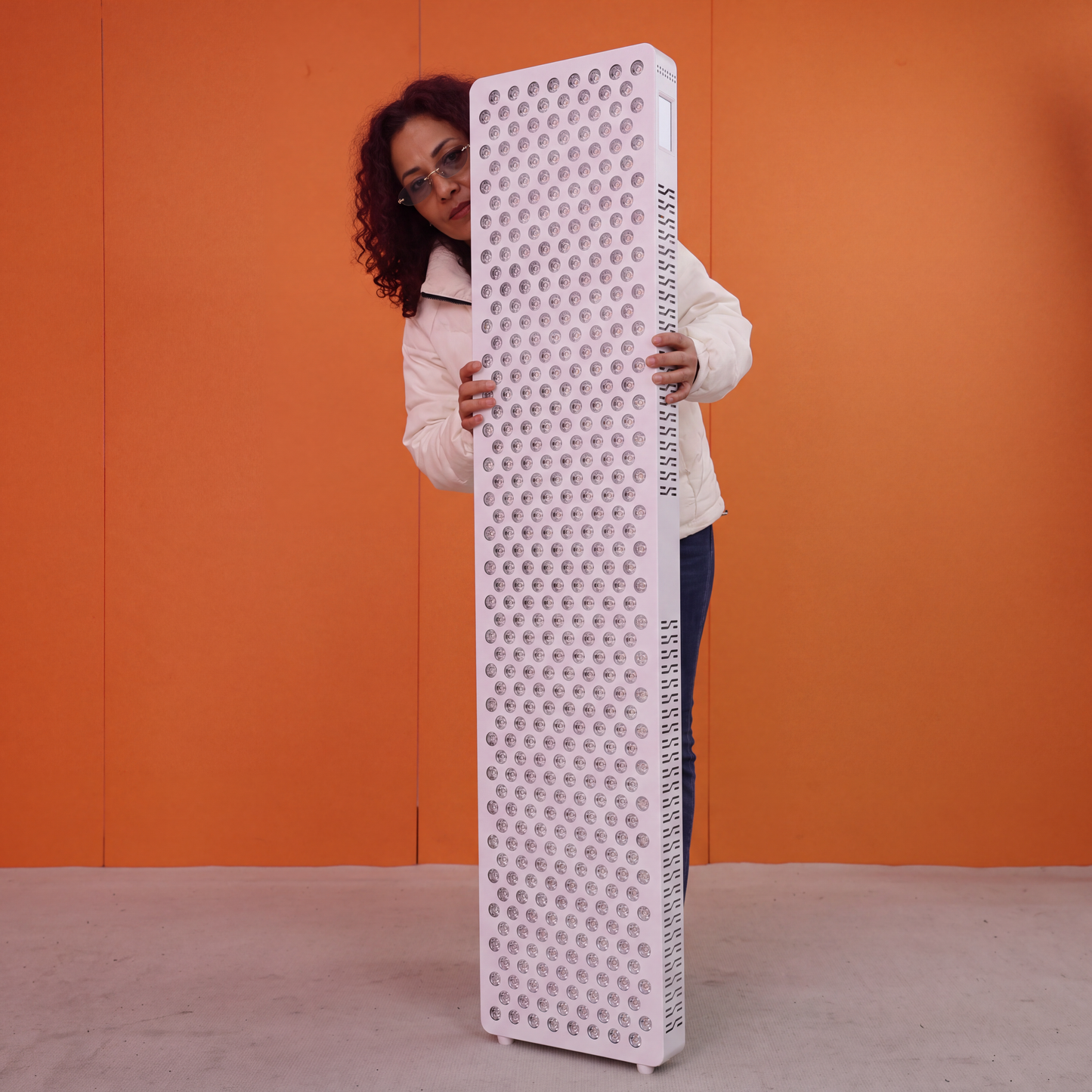

The Radiance Elite 450 features 432 dual-chip LEDs and 720W actual power in a panel approximately 53.5 inches tall.

Its size provides substantial treatment coverage while remaining easier to accommodate in home wellness spaces and smaller professional environments.

450 Highlights

• 432 dual-chip LEDs
• 720W actual power
• 53.5" H × 11.8" W × 2.6" D
• 9 wavelengths
• Manufacturer-rated combined irradiance: ≥140 mW/cm² at 6"
• Individually adjustable wavelengths
• 1–100% adjustable intensity
• 1–10,000 Hz pulsing
• Touchscreen controls
• Bluetooth + app connectivity
• Remote control
• 3-year warranty

---

Radiance Elite 600™

Expanded coverage for serious full-body sessions.

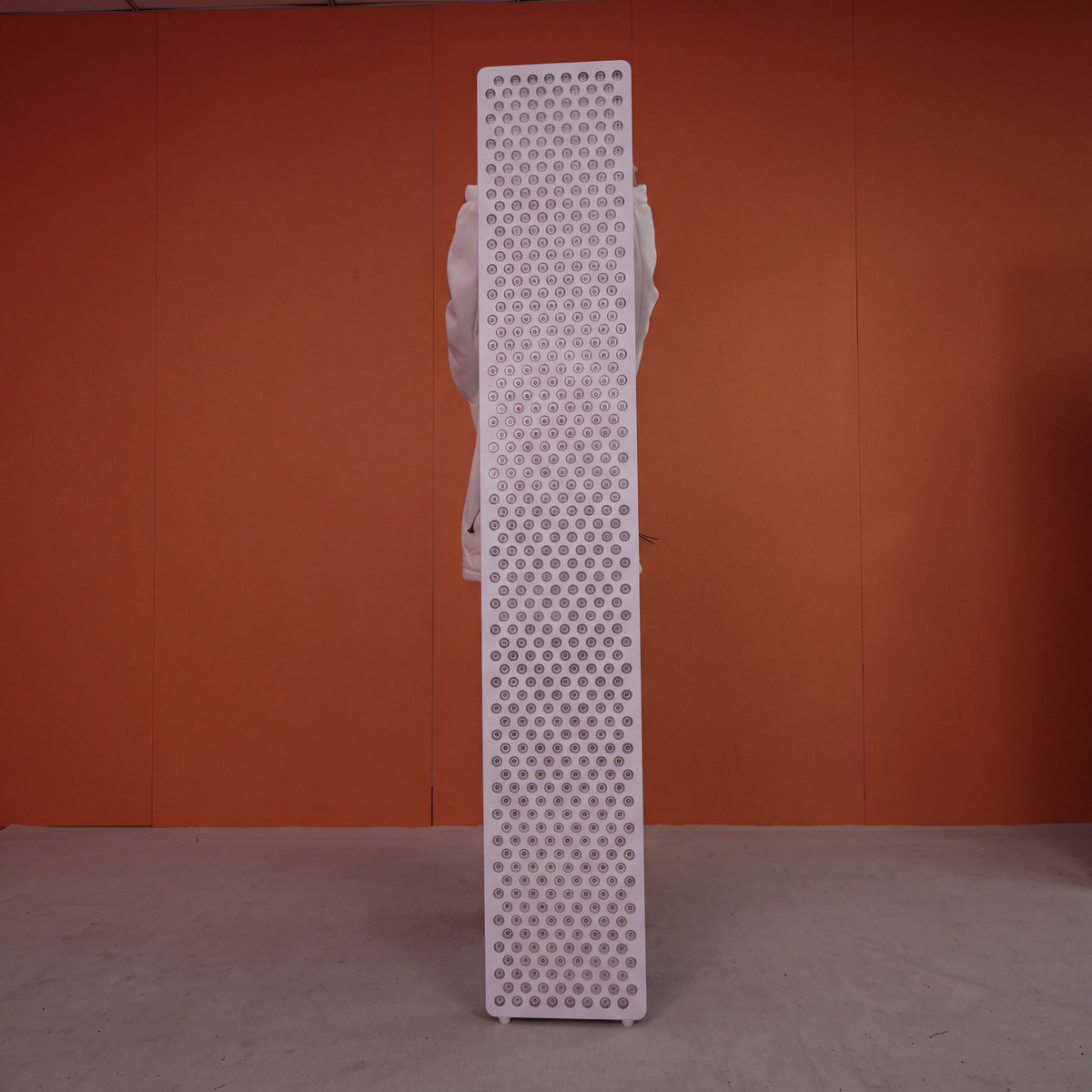

Standing approximately 71.7 inches tall, the Radiance Elite 600 provides significantly greater head-to-toe coverage.

Its 576 dual-chip LEDs and 960W actual power make the 600 an excellent choice for users who prioritize full-body coverage and for dedicated wellness, fitness, recovery, and professional environments.

600 Highlights

• 576 dual-chip LEDs
• 960W actual power
• 71.7" H × 11.8" W × 2.6" D
• 9 wavelengths
• Manufacturer-rated combined irradiance: ≥140 mW/cm² at 6"
• Individually adjustable wavelengths
• 1–100% adjustable intensity
• 1–10,000 Hz pulsing
• Touchscreen controls
• Bluetooth + app connectivity
• Remote control
• 3-year warranty

---

9-Wavelength Technology

The Radiance Elite Series goes beyond traditional two-wavelength red light panels with a broad spectrum of nine visible and near-infrared wavelengths:

480nm • 590nm • 630nm • 660nm • 670nm • 810nm • 830nm • 850nm • 1060nm

Rather than simply adding more wavelengths, the Radiance Elite platform gives you the ability to individually control wavelength output, allowing greater customization over your sessions.

Visible Light
480nm • 590nm

Red Light
630nm • 660nm • 670nm

Near-Infrared Light
810nm • 830nm • 850nm • 1060nm

This broad-spectrum configuration allows you to customize your light-therapy routine instead of being limited to a fixed red/NIR combination.

---

High-Output Irradiance

Both Radiance Elite models are designed to deliver powerful light output across a large treatment area.

Manufacturer-Rated Output at 6 Inches

The manufacturer's original specifications are expressed as ≥1400 W/m² combined, ≥150 W/m² red, and ≥1200 W/m² near-infrared at 6 inches. The values above have been converted to mW/cm² for easier comparison.

Why Irradiance Matters

Irradiance represents the amount of light power reaching a given area and is commonly expressed as mW/cm² in the red-light-therapy industry.

But maximum irradiance isn't the only factor that matters. Treatment distance, selected wavelengths, intensity settings, session duration, and the distribution of light across the treatment area can all affect light exposure.

That's why Radiance Elite gives you 1–100% intensity control rather than forcing every session to operate at maximum output.

Irradiance figures are manufacturer-provided specifications. Actual measurements may vary depending on measurement equipment, testing position, selected wavelengths, distance, and environmental/testing conditions.

---

Complete Control Over Your Sessions

Individual Wavelength Control

Customize wavelength output instead of being limited to one predetermined spectrum.

1–100% Adjustable Intensity

Increase or decrease light output to match your preferred session and treatment distance.

1–10,000 Hz Adjustable Pulsing

Customize pulse frequency for even greater control over your light-therapy routine.

Touchscreen Control

Quickly manage your session through the integrated touchscreen interface.

Bluetooth + App Connectivity

Compatible smart controls provide another convenient way to customize and manage your sessions.

Remote Control

Make adjustments without having to interrupt your session.

---

Designed for Home & Professional Wellness

The Radiance Elite Series is designed to fit into a variety of wellness routines and environments.

Fitness & Recovery
Large-area coverage makes it convenient to incorporate red and near-infrared light into pre- and post-workout wellness routines.

Skin & Beauty
Multiple visible wavelengths provide additional flexibility for light-based beauty and skincare routines.

Muscle & Joint Wellness
Large-area red and near-infrared exposure makes the panels well suited to general wellness and recovery routines.

Everyday Wellness
Create a consistent light-therapy routine without repeated visits to an outside facility.

Professional Wellness
Suitable for a range of wellness, fitness, recovery, and aesthetic environments.

---

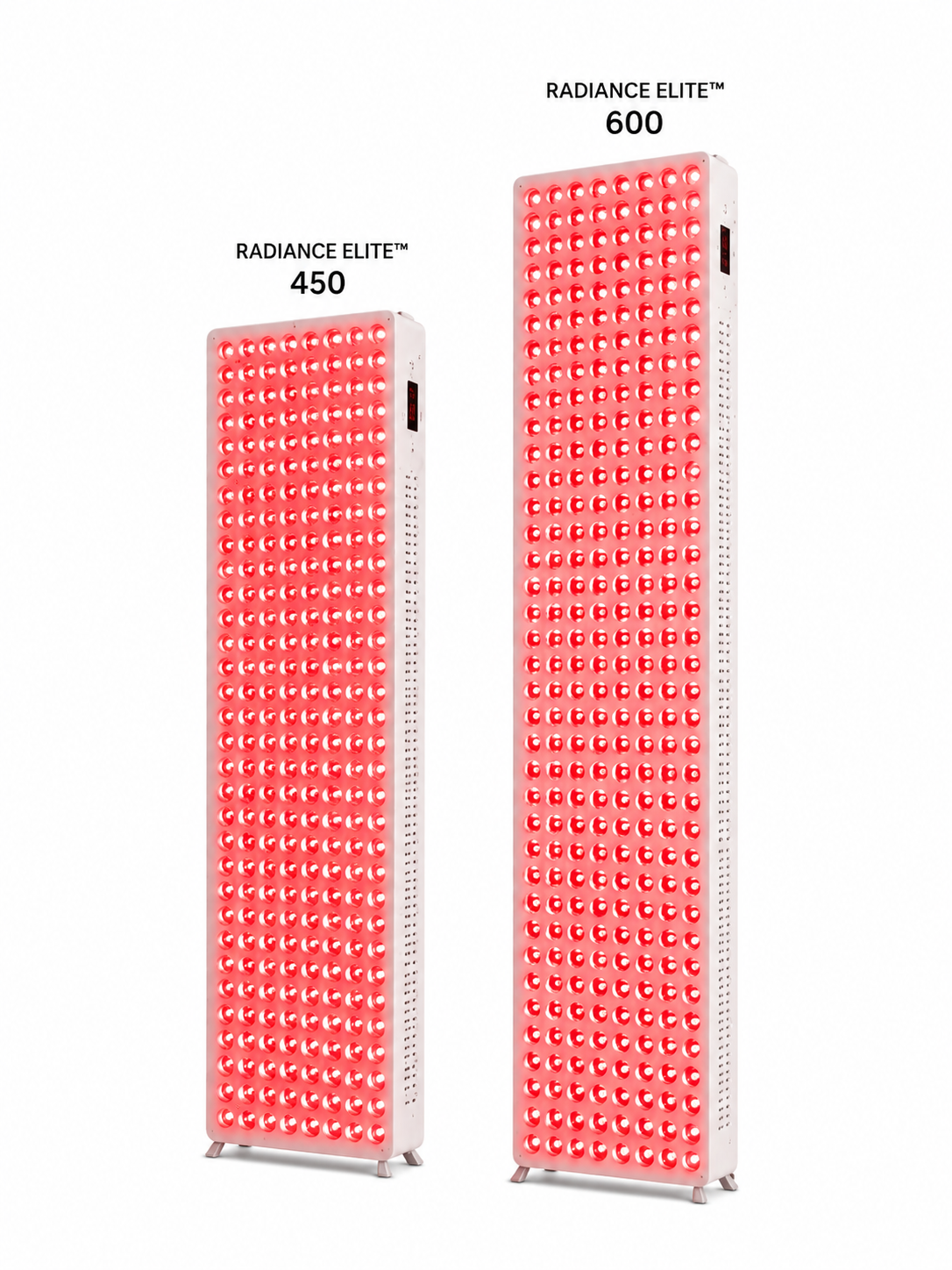

Radiance Elite 450™ vs. 600™

Choose the Radiance Elite 450™ if:

You want substantial treatment coverage and advanced Radiance Elite functionality in a smaller, more affordable system.

Choose the Radiance Elite 600™ if:

You want greater head-to-toe coverage and the convenience of a nearly six-foot-tall panel for frequent full-body sessions.

Quality & Regulatory Documentation

The LumaHalo Radiance Elite™ Series is manufactured under established quality management standards, with manufacturer documentation supporting applicable regulatory and conformity requirements.

Manufacturer documentation includes:

• ISO 13485:2016 quality management system certification
• MDSAP documentation
• CE conformity documentation for applicable models
• U.S. FDA establishment registration and device listing documentation
• Health Canada Class II medical device licensing documentation for applicable products
• Australian ARTG documentation for applicable red/infrared phototherapy products
• 36-month manufacturer warranty

Important Regulatory Notice: Regulatory status and documentation may vary by specific device, model, and jurisdiction. U.S. FDA establishment registration and device listing do not constitute FDA approval, authorization, certification, or 510(k) clearance.

---

What's Included

Each Radiance Elite purchase includes:

• Your selected Radiance Elite 450™ or Radiance Elite 600™
• Power cable
• Remote control
• Protective eyewear
• User documentation
• 3-year warranty

---

Technical Specifications

Radiance Elite 450™

LEDs: 432 dual-chip LEDs
Actual Power: 720W ±10%
Dimensions: 53.5" H × 11.8" W × 2.6" D
Wavelengths: 480 / 590 / 630 / 660 / 670 / 810 / 830 / 850 / 1060nm
Combined Irradiance: ≥140 mW/cm² at 6"
Red Output: ≥15 mW/cm² at 6"
NIR Output: ≥120 mW/cm² at 6"
Intensity: 1–100% adjustable
Pulse Range: 1–10,000 Hz
Input: 100–240V AC, 50/60Hz
Controls: Touchscreen + Remote
Connectivity: Bluetooth + App
Warranty: 3 Years

Radiance Elite 600™

LEDs: 576 dual-chip LEDs
Actual Power: 960W ±10%
Dimensions: 71.7" H × 11.8" W × 2.6" D
Wavelengths: 480 / 590 / 630 / 660 / 670 / 810 / 830 / 850 / 1060nm
Combined Irradiance: ≥140 mW/cm² at 6"
Red Output: ≥15 mW/cm² at 6"
NIR Output: ≥120 mW/cm² at 6"
Intensity: 1–100% adjustable
Pulse Range: 1–10,000 Hz
Input: 100–240V AC, 50/60Hz
Controls: Touchscreen + Remote
Connectivity: Bluetooth + App
Warranty: 3 Years

---

Advanced Light Therapy. Built Around You.

The LumaHalo Radiance Elite™ Series was selected for customers who want more from their red light therapy system.

With nine wavelengths, up to ≥140 mW/cm² manufacturer-rated combined irradiance at 6 inches, individual wavelength control, adjustable intensity, customizable pulsing, smart connectivity, and two full-body size options, Radiance Elite gives you the flexibility to create a light-therapy setup around your space and routine.

Choose Your Size. Customize Your Session. Elevate Your Light Therapy.

Select the Radiance Elite 450™ or Radiance Elite 600™ above.
